Model Type:Digital Input Module
Manufacturer:TRICONEX
Points:16, Commoned
Nominal Output Voltage:24 VDC
Specified Operational Voltage Range:15 to 30 VDC
Absolute Maximum Output Voltage:33 VDC
Absolute Maximum Reverse Input Voltage:- 0.6 VDC
Output Current:<4.8 A, Self-Limiting; 3.0 A, Typical
Degraded Mode Current:> 0.7 A, Self-Limiting; 1.5 A, Typical
Field Alarms:Loss of Field Power, Output Point Shorted
On or Off Loop-Back Thresholds:0–5 VDC = Off Region; 6–14 VDC = Transition Region; 15–30 VDC = On Region
Leakage to Load (Off):Less than 5 mA
Operating Voltage:24 VDC
Output Frequency:Not specified
Certified Product:Yes
Series:DO 3401
Material Coding:DO 3401

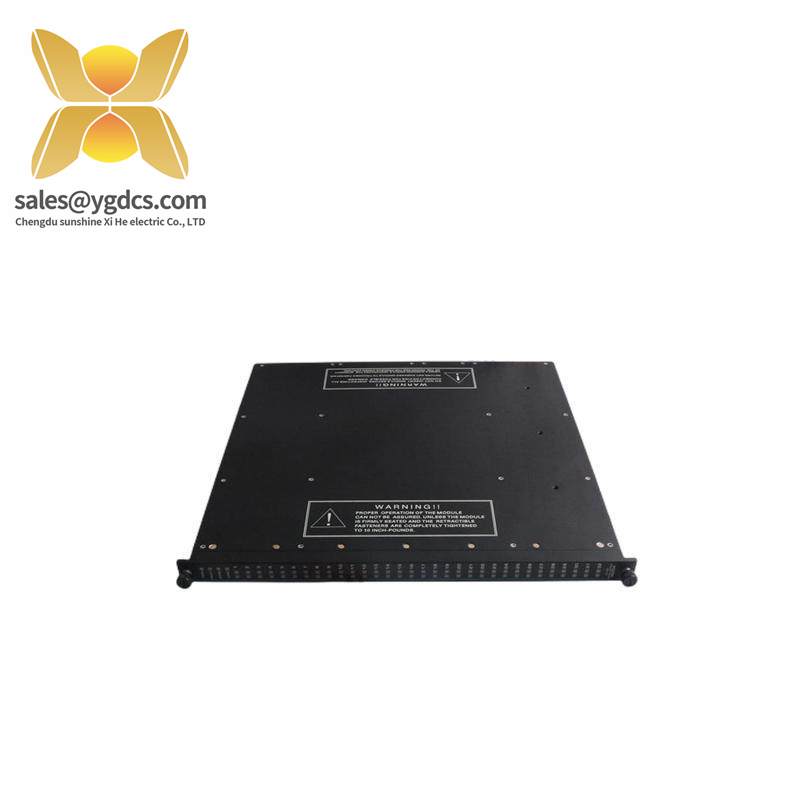

The TRICONEX DO3401 Output Module is engineered for seamless integration into complex industrial control systems, ensuring reliable operation under extreme conditions. With its 16 commoned points and wide operational voltage range, this module offers unparalleled flexibility and robustness.
Featuring advanced switching capabilities and self-limiting currents, the DO3401 is designed to handle fluctuating loads without compromising performance. Its ability to detect and respond to field alarms promptly ensures system integrity and safety.
Manufactured with precision and quality in mind, the DO3401 utilizes high-grade materials to withstand harsh environments, making it ideal for applications in oil & gas, petrochemicals, and process industries where reliability is paramount.
This output module supports loop-back threshold settings that can be customized according to specific application requirements, allowing users to fine-tune their control systems for optimal efficiency and responsiveness.
Installation and maintenance are straightforward thanks to the user-friendly interface and comprehensive documentation provided by TRICONEX, ensuring minimal downtime and ease of use for operators.
