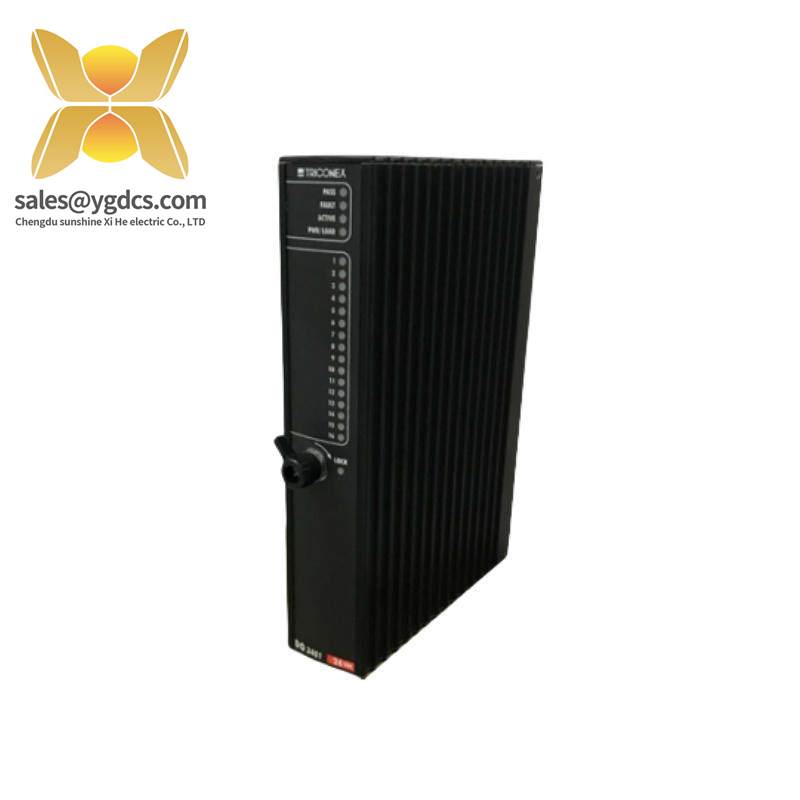

Product Type:Digital Output Module
Manufacturer:Triconex
Model Number:DO3401
Nominal Output Voltage:24 VDC
Operational Voltage Range:15 to 30 VDC
Absolute Maximum Output Voltage:33 VDC
Absolute Maximum Reverse Input Voltage:- 0.6 VDC
Output Current (Switching):<4.8 A, self-limiting; 3.0 A, typical
Output Current (Degraded Mode):> 0.7 A, self-limiting; 1.5 A, typical
Field Alarms:Loss of field power, output point shorted
On or Off Loop-back Thresholds:0–5 VDC = Off region; 6–14 VDC = transition region; 15–30 VDC = On region
Leakage to Load (Off State Glitch):Duration <2 ms; Magnitude ≈36% test voltage
Output Impedance:0–5 VDC, ≈ 100 kΩ
ADC Scan Time:<1 ms for all 32 points
Functional Earth to Protective Earth Isolation:500 VDC, minimum
Functional Earth to Functional Earth (Logic Ground) Isolation:800 VDC, minimum
Engineered with robust materials for enhanced durability and reliability in harsh industrial environments.
Supports versatile applications across various industries, from manufacturing to energy sectors.
Features advanced diagnostic capabilities for quick issue detection and resolution.
Offers a wide operational voltage range ensuring compatibility with diverse system configurations.
Comes with comprehensive documentation and support services for easy integration and maintenance.
