Communication Protocol:Modbus Master/Slave
Product Type:ASCII
ID:MVI69-MCM
Backplane Technology:Licensed from Rockwell Automation
Data Transfer Speed:High-speed
Compatibility:Backward compatible
Floating Point Support:Supported
Data Block Size:Reduced
Controller Integration:RSLogix 5000
Configuration:Sample ladder logic included
Port Configuration:Individually configurable
Module Size:0/120/240 – 16 bit integers
Communication Parameters:{“Baud Rate”:”110 to 115K baud”,”Stop Bits”:”1 or 2″,”Data Size”:”7 or 8 bits”,”Parity”:”None, Even, Odd”,”RTS Timing Delays”:”0 to 65535 milliseconds”}

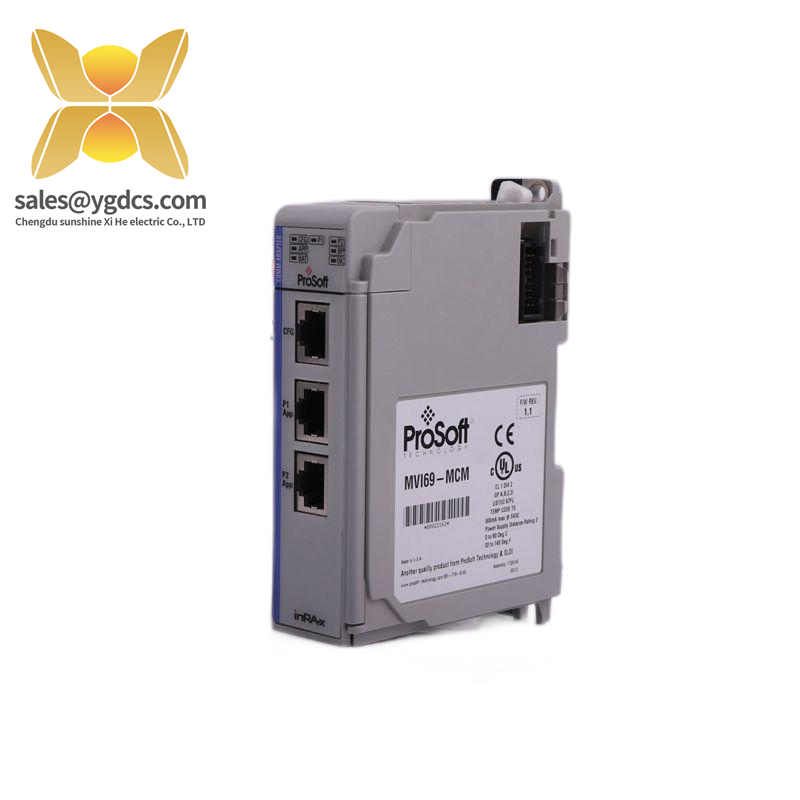

The ProSoft MVI69-MCM is designed to streamline industrial automation by providing a robust interface for data exchange between CompactLogix and MicroLogix processors. Leveraging licensed backplane technology, it ensures efficient and reliable communication at high speeds.
Manufactured under license from Rockwell Automation, this module seamlessly integrates into existing systems, ensuring compatibility and ease of installation. It comes equipped with an optional sample ladder logic for quick setup and can emulate both Modbus Master and Slave devices.
View and manage module data and status directly within the RSLogix 5000 controller tags and User Datagram Types (UDTs), streamlining system monitoring and management. The module supports floating-point data movement, including configurable support for various implementations like Enron and Daniel®.
With its backward compatibility feature, the MVI69-MCM allows for direct replacement of earlier MVI56 modules without the need for costly software reprogramming. This not only saves time but also reduces the risk of errors during updates.
The reduced data block feature optimizes network bandwidth usage, making it particularly suitable for environments where resource allocation is critical. Additionally, the flexibility and configurability offered by the module cater to diverse application needs, enhancing its adaptability across various industries.
