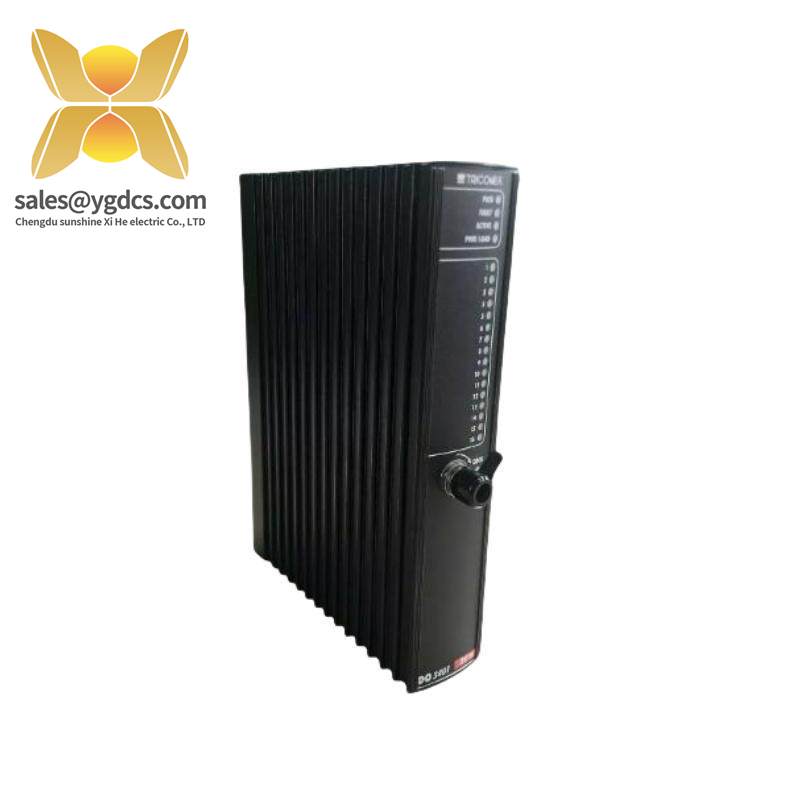

Invensys Triconex 3401 Digital Output Module – Advanced Industrial Control Solution

Model Type:Digital Output Module

Manufacturer:Invensys Triconex

Product ID:3401

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:-0.6 VDC

Output Current (Switching):<4.8 A, self-limiting; 3.0 A, typical

Degraded Mode Current:> 0.7 A, self-limiting; 1.5 A, typical

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region; 6–14 VDC = transition region; 15–30 VDC = On region

Leakage to Load (Off):Minimal

Commoned Points:16

Weight:N/A (not specified)

    The Invensys Triconex 3401 Digital Output Module is engineered for robust performance in harsh industrial settings, ensuring reliability and precision in critical control applications.

    Featuring up to 16 channels of digital output control, this module is designed to meet the diverse needs of complex industrial processes.

    With an operational voltage range of 15 to 30V DC and a nominal voltage of 24V DC, it supports a wide variety of industrial applications, providing versatile control capabilities.

    Equipped with advanced circuitry, the module ensures safe operation under various conditions, including reverse input protection down to -0.6V DC.

    In degraded mode, it maintains critical functionality with output currents ranging from 0.7A to 1.5A, ensuring system integrity even under unexpected conditions.

    Equipped with field alarms for loss of field power and output point shorting, the module provides immediate feedback, enhancing system safety and maintenance efficiency.
