Dimension (LxWxH):33 cm x 10.2 cm x 4.8 cm
Weight:0.54 kg
Material:High-grade copper alloy and reinforced epoxy resin
Operating Temperature Range:-20°C to +70°C
Current Handling Capacity:Up to 15 A
Voltage Rating:AC/DC up to 400 V
Number of Terminals:48
Compatibility:Mark VI series of turbine control systems
Crafted with precision for the demanding requirements of industrial control systems, the GE IS200TBTCH1BBB circuit board features an innovative design that ensures reliable thermocouple signal management.

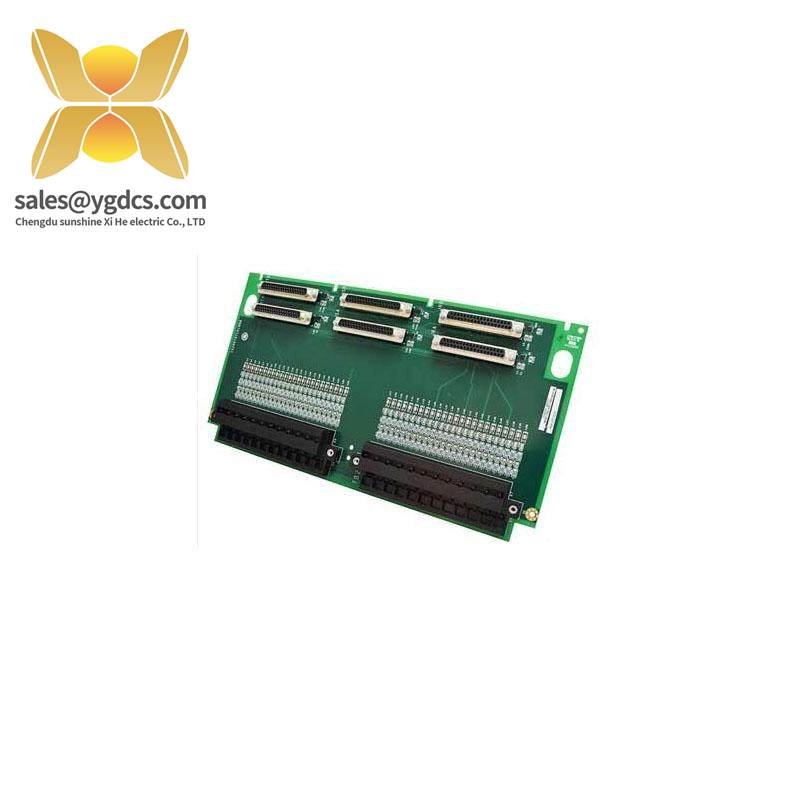

This rectangular circuit board boasts two distinct connector ports, JA1 and JB1, which facilitate easy connection to other system components, enhancing operational efficiency.
Located along the right side of the board are two series of capacitors identified with the letter ‘L’, crucial for maintaining stable electrical signals, and a set of silver capacitors adjacent to them that provide additional filtering capabilities.
Two long lines of small blue resistors are strategically placed for precise current regulation, ensuring that power distribution is both efficient and controlled.
Designed for longevity and robustness, this circuit board is made from high-grade materials that withstand harsh industrial environments, guaranteeing dependable performance over extended periods.
