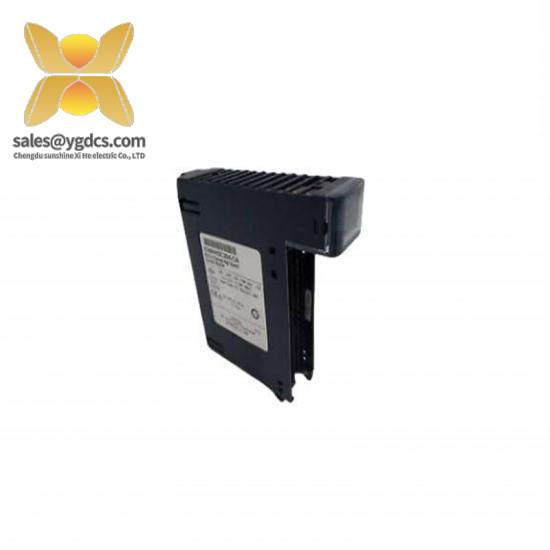

GE Fanuc IC695HSC308 – High Performance High Speed Counter Module

Module Type:High Speed Counter

Operating Range:0 to 4000 Hz

Accuracy:+/- 1 count

Counting Capacity:Up to 2^32 counts

Power Consumption:2.4 W

Environmental Conditions:-20°C to +70°C

Connectivity:RS-485 interface for modular systems

Dimensions:125.7 x 125.7 x 34.7 mm

Mounting:Panel mounting compatible with DIN rail

    Integrating advanced technology from GE Fanuc, the IC695HSC308 High Speed Counter Module is engineered for high performance in demanding industrial environments. This module is a critical component in automation systems, offering exceptional precision in timing and counting operations.

    With its robust design, the IC695HSC308 supports four high-speed counter channels capable of operating at a maximum rate of 1 MHz, ensuring accurate and reliable performance in applications requiring fast response times.

    Featuring an operating voltage of 24V DC, this module is compatible with a wide range of industrial power sources, making it versatile for various automation setups. Its RS-485 interface facilitates efficient communication within complex systems, enhancing system integration.

    The IC695HSC308 is equipped with high resolution, measuring down to 1 µs, which allows for precise measurement of time intervals or counts in applications such as conveyor monitoring, machine tool control, and process control systems. Its ±0.01% accuracy ensures minimal error margins, contributing to higher quality production outputs.

    Operated within a temperature range of -10°C to +60°C and with a humidity level of 5% to 95% non-condensing, the IC695HSC308 is built to withstand harsh industrial conditions. This durability ensures reliable operation in diverse settings, from manufacturing floors to outdoor automation stations.
