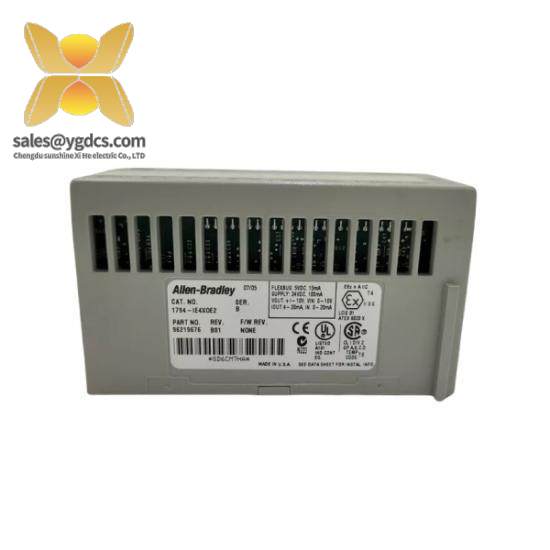

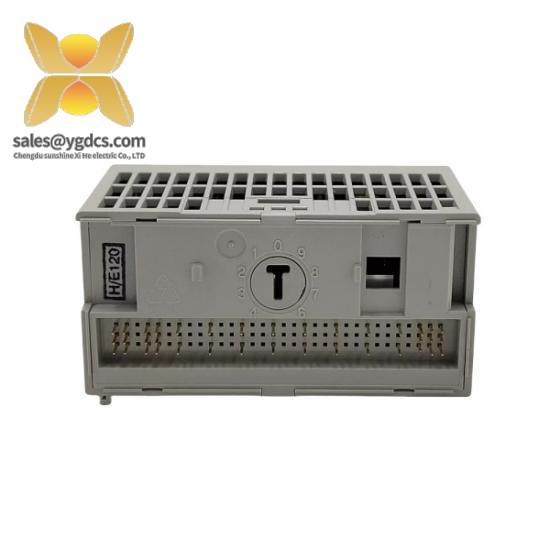

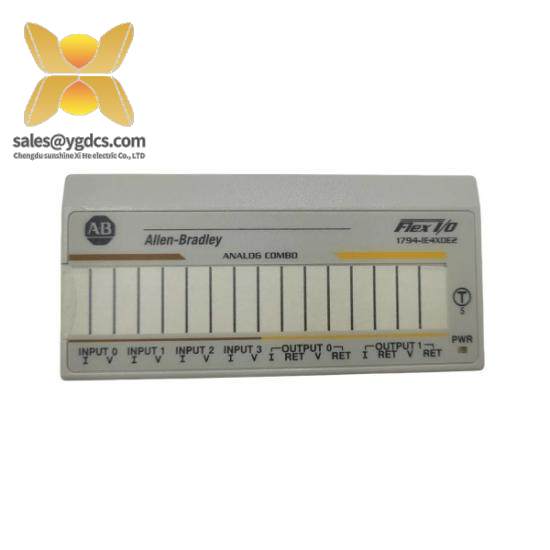

Allen-Bradley 1794IE4XDE2 – 4 Input 2 Output Analog Module, Industrial Automation Control

Series:Flex I/O High-Density Analog Module

Product Type:Extended PLC Component

Number of Inputs:Four (4) single-ended, non-isolated inputs

Current Input Signals:0-20 mA / 4-20 mA

Number of Outputs:Two (2) Single Ended, non-isolated

Output Types:0 to 20 mA; 4 to 20 mA; +/- 10VDC

Mounting Method:DIN Rail

Operating Voltage:24VDC

Load Capacity:Up to 1A per channel

    The Allen-Bradley 1794-IE4XOE2 module is a vital component for industrial automation systems, designed to deliver accurate analog data processing with its four single-ended, non-isolated input channels. This feature ensures seamless integration into complex control networks.

    With the capability to handle current input signals from 0-20 mA or 4-20 mA, it provides precise measurement essential for various industrial applications, including temperature, pressure, and flow monitoring.

    Featuring two single-ended, non-isolated output channels, the module offers flexibility in controlling actuators, motors, or other devices requiring analog signals. It supports output types ranging from 0 to 20 mA, 4 to 20 mA, or ±10VDC, making it suitable for a wide array of operational scenarios.

    Equipped with a DIN rail mounting system, the module ensures secure and efficient installation in industrial environments. Its compact design allows for easy integration into existing control systems without compromising on performance.

    Operating on a reliable 24VDC power supply, the Allen-Bradley 1794-IE4XOE2 module boasts a load capacity of up to 1A per channel, ensuring robust handling of current demands. This feature makes it an ideal choice for applications requiring high accuracy and reliability.
