Model Type:Communication Module
High Capacity IP Module:Yes
Manufacturer:Allen Bradley
ControlLogix® Communication Module:Yes
Power Supply:3 MA at 24 VDC
Mounting:Chassis
Communication Speed:10/100 MBPS
Communication Protocol:Ethernet/IP Bridge
Enclosure:Open Type
Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Isolation:30 V Continuous
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration:2 G
Shock:30 G
Interface:Ethernet
USB Port:Available

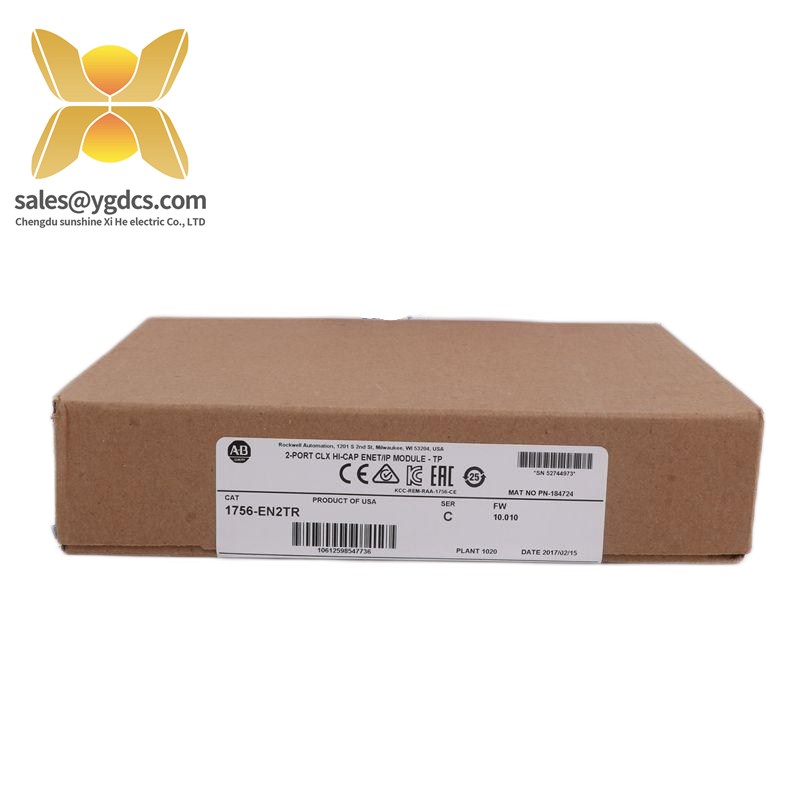

The Allen-Bradley 1756-EN2TR/C Communication Module is a high-capacity IP module designed for advanced communication needs in industrial environments. It seamlessly integrates with ControlLogix PLCs and extends their capabilities by providing robust Ethernet/IP connectivity.
Featuring a 10/100 MBPS communication speed, this module ensures fast data transfer rates critical for real-time control applications. Its open type enclosure ensures durability and ease of installation, making it suitable for various industrial settings.
With support for 802.3 compliant shielded or unshielded twisted pair cables, the module offers flexibility in cable choice, ensuring compatibility with existing infrastructure. Its ability to operate within a temperature range of 0 – 60 DEG C ensures reliable performance in diverse environmental conditions.
The 1756-EN2TR/C module is equipped with a 5.1 W power dissipation feature, which efficiently manages energy consumption, contributing to operational cost savings. The continuous isolation of 30 V further enhances its safety and reliability.
Designed with advanced features such as USB port availability, this module supports convenient software updates and data transfers. Its compatibility with Ethernet/IP protocol ensures seamless integration with other network devices, facilitating a cohesive industrial automation system.
