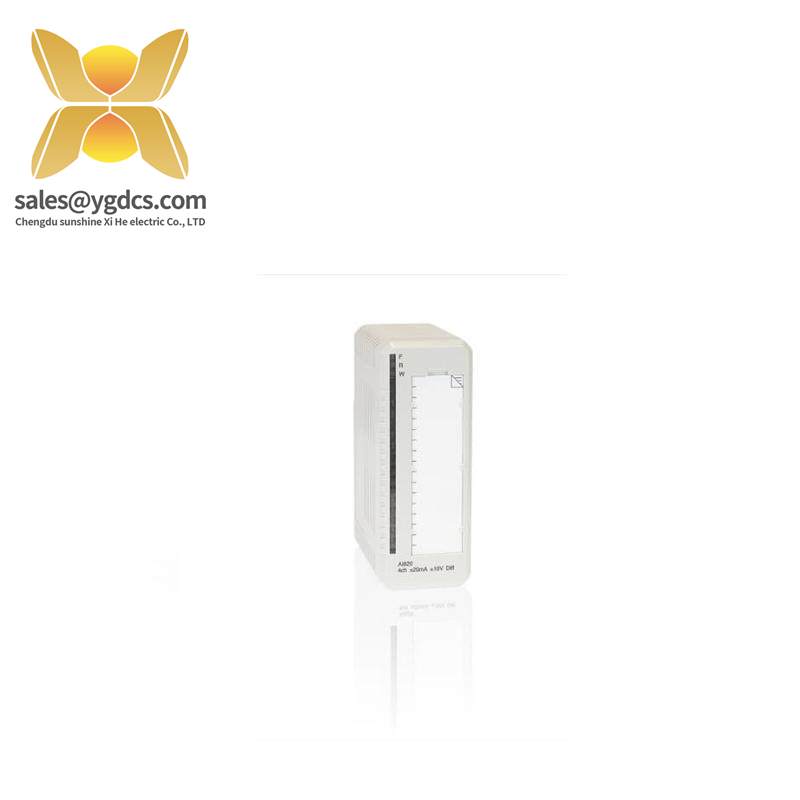

ABB AI820 3BSE008544R1 – 4-Channel Analog Input Module

Number of Channels:4

I/O Voltage, DC:10 V

I/O Voltage, AC:N/A V

I/O Current, DC:20 mA

I/O Current, AC:N/A mA

A/D Resolution:14 bit

Rated Insulation Voltage:50 V

Power Dissipation:3.5 W

Weight:0.23 kg

Dimensions😀 x H x W (mm)

:102 x 19 x 45

Module Type:AI820

    The ABB AI820 3BSE008544R1 is an advanced analog input module tailored for industrial automation applications, ensuring precise data acquisition and reliable operation in demanding environments.

    Featuring 4 channels capable of measuring current and voltage inputs across a wide range, this module supports various industrial standards, making it compatible with a broad spectrum of control systems.

    With a resolution of 14 bits, the AI820 provides unparalleled accuracy, enabling meticulous monitoring and control of industrial processes. Its robust design ensures longevity and minimal maintenance requirements.

    Equipped with a high-grade aluminum alloy casing, the module withstands harsh industrial conditions, from low temperatures to high operational demands, ensuring consistent performance throughout its lifecycle.

    The compact size and lightweight design facilitate easy installation and integration into existing control systems, minimizing downtime and maximizing efficiency.

    Designed for seamless operation within a temperature range of -20°C to +60°C, the ABB AI820 3BSE008544R1 is ideal for applications where reliability and precision are paramount, enhancing productivity and process control in manufacturing, automotive, and other industries.
