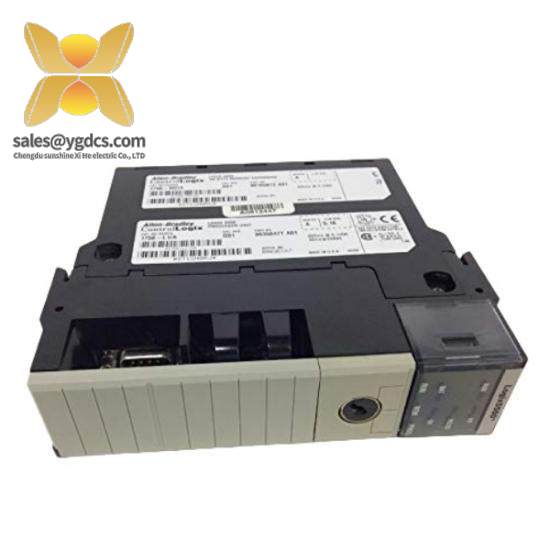

AB 1756-L1M1 ControlLogix Logix5550 Processor

Model Type:ControlLogix

Processor Model Number:1756-L1M1

Manufacturer:Allen-Bradley

Memory:16 MB

I/O Memory:0.98 MB

Isolation:30 V (Continuous)

Basic Insulation Type:Type

USB Port:To Backplane

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ, 10 V/M With 200 Hz 50% Pulse 100% AM At 900 MHz, 10 V/M With 200 Hz 50%

Configuration:Backward-compatible with previous MVI56-MNETR versions

Ethernet Compatibility:Single-Slot ControlLogix backplane compatible, 10/100 Mbps auto crossover detection, Ethernet configuration and application port

User Memory:Up to 5000, 16-bit registers

CIPconnect Support:Enabled network configuration and diagnostics monitoring

Remote Image Size:Optimized for remote rack implementations

Software Tools:ProSoft Configuration Builder (PCB) software

Weight:0.32 kg

    The Allen Bradley AB 1756-L1M1 ControlLogix Logix5550 Processor is engineered to meet the demands of the most sophisticated industrial automation tasks. With its robust processor speed and extensive memory capacity, it ensures efficient operation and quick response times in real-time control scenarios.

    Featuring a modular design, this PLC allows for easy expansion and integration with other Allen-Bradley products and third-party devices. Its support for multiple communication protocols enhances connectivity within existing networks, facilitating seamless data exchange.

    Equipped with conformal-coated circuit boards, the AB 1756-L1M1 ensures exceptional reliability in harsh industrial environments. This feature, combined with its wide operating temperature range (-20°C to +60°C), makes it suitable for a broad spectrum of manufacturing settings.

    Incorporating advanced safety features, the processor adheres to stringent international safety standards (UL, CE, CSA), ensuring compliance with industry regulations and enhancing workplace safety.

    For ease of configuration and maintenance, the Allen Bradley AB 1756-L1M1 supports both graphical programming tools and intuitive software interfaces, streamlining setup processes and reducing the learning curve for new users.
